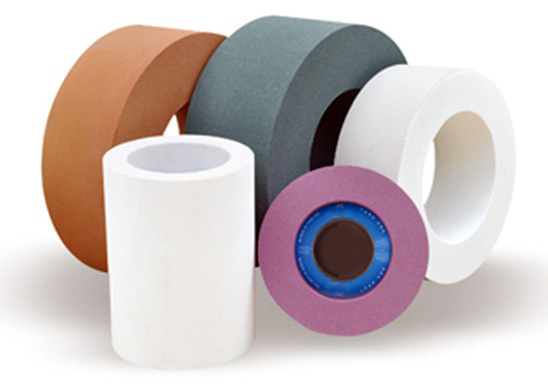

Centerless grinding wheels

Centerless grinding wheels

Centerless grinding wheels,generally used in the centerless grinding machine for grinding external of workpieces .

INQUIRY



Centerless grinding wheels,generally used in the centerless grinding machine for grinding external of workpieces ,  the workpiece lies between two wheels.
 A Aluminium Oxide for general purpose off-hand sharpening
 GC Silicon Carbide for non-ferrous metals, carbide tools
 WA White Aluminium Oxide for HSS & Tool Steel

Main Size :

Diameter:250mm ~ 750mm
Thickness:100mm ~ 600mm
Hole:127mm ~ 305mm
Materials:A (Brown Aluminum Oxide ),WA (White Aluminum Oxide ),
C ( Black Silicon Carbide ),GC ( Green Silicon Carbide )
Grit Size:36# ,460#,60#,80#,100#,120#…
Bond:V (Vitrified Bond)
B (Resin Bond)
R (Rubber Bond)
Popular Size:350 x 100 x 127mm
350 x 100 x 152.4mm
350 x 150 x 127mm
350 x 150 x 152.4mm
500 x 150 x 304.8mm
500 x 200 x 304.8mm
600 x 250 x 304.8mm
